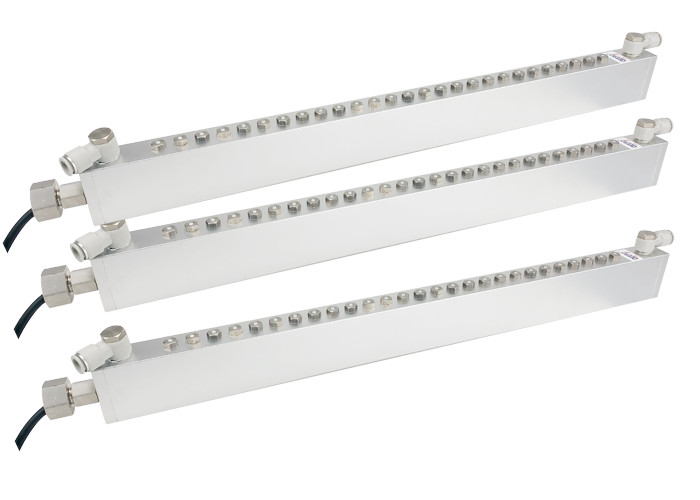

QP-F35A Electroshock-Proof Static Charge Eliminator Bar For
Industry
Description
QP-F35A explosion-proof electrostatic eliminator has passed the
certification test of national explosion-proof certification
authority, and has been tested in ethylene environment. It can be
used for electrostatic elimination in class IIB explosive gas
environment. The product adopts the built-in structure of the
discharge unit. Through the structural design of the compressed air
blowing out the ions, the abnormal discharge of the discharge
electrode to the external environment is avoided, and the product
safety performance is improved; at the same time, the positive and
negative ions generated by corona discharge are blown to the
material surface by compressed air, which increases the effective
working distance of the product; the back T-groove installation
structure is convenient and simple.
Performance Parameters:
| Model | QP-F35A | Explosion proof sign | Ex sc IIB T4 Gc |
| input voltage | 220V AC 50/60Hz | Explosion proof Certificate No. | GYB19.0001X |
| working voltage | Max 7000V AC | Discharge electrode material | Ti |
| Rated current | Max 7mA | Ion balance | ±50V |
| working frequency | 50/60Hz | Electrostatic removal speed | ≦0.3S |
| working temperature | 0℃～40℃ | Working humidity | 35%～75%RH |
| Working air pressure | ≦0.5Mpa | Working distance | 50-600mm |
| Tracheal size | Φ12 | Discharge electrode spacing | 15mm/20mm |
Application field:
Electronic
Photoelectric
Printing
Plastic
Textile and other industries
Maintain
(1) According to the use environment, the electrostatic eliminator
needs to clean the discharge electrode at regular intervals to
ensure the high efficiency of eliminating static electricity.
Cleaning method: turn off the power supply, wipe the tip with
anhydrous alcohol, and then turn on the power after the alcohol is
completely volatilized;
(2) If the indicator light on the panel of the power box is off, it
should be stopped from using and repaired by professional
maintenance personnel. The power box can only be used again after
it is checked to be normal.

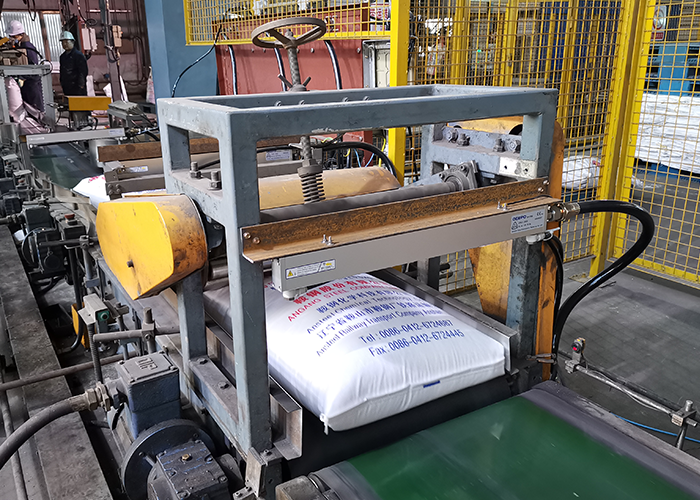

Installation case
